About
Description
- Configuration Utility. Configure all actions with the easy to use configuration utility available on the card
- 6 Configurable Output Relays. In response to the UPS or input contacts changing states, and optionally including a customizable delay, trigger actions on external devices.
- Compatible with SmartSlot enabled UPSs. Compatible with all SmartSlot UPSs
- Optional Dry Contact I/O Accessory. Each Dry Contact I/O Accessory increases the number of input contacts by 2 and output relays by 1
- Input Output Interaction. Enables interaction between device events (Inputs) and control actions (Outputs)
- Expandable Input and Output Ports. Supports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory
- 4 Configurable Input Contacts. Monitor external devices to trigger actions such as notifications or a change in output relay state with custom delay
- Helps save energy — designed to limit the energy used by other products, potentially helping you reduce your carbon footprint and save money.
Specs
| Manufacturer # | |
| Brand Name | Schneider |
| Color | Black |
| Depth | 4-1/2 in. |
| Dimensions | 1-1/2 in. X 4-8/10 in. X 4-1/2 in. |
| Eco Label Standard | RoHS |
| Eco-conscious | Helps Save Energy |
| Height | 1-1/2 in. |
| Manufacturer | AMERICAN POWER CONVERSION CORP |
| Model | Dry Contact I/O SmartSlot Card |
| Quantity | 1 |
Description
- Configuration Utility. Configure all actions with the easy to use configuration utility available on the card
- 6 Configurable Output Relays. In response to the UPS or input contacts changing states, and optionally including a customizable delay, trigger actions on external devices.
- Compatible with SmartSlot enabled UPSs. Compatible with all SmartSlot UPSs
- Optional Dry Contact I/O Accessory. Each Dry Contact I/O Accessory increases the number of input contacts by 2 and output relays by 1
- Input Output Interaction. Enables interaction between device events (Inputs) and control actions (Outputs)
- Expandable Input and Output Ports. Supports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory
- 4 Configurable Input Contacts. Monitor external devices to trigger actions such as notifications or a change in output relay state with custom delay
- Helps save energy — designed to limit the energy used by other products, potentially helping you reduce your carbon footprint and save money.
| Attribute Name | Attribute Value |
|---|
Schneider
by
Schneider
AP9613

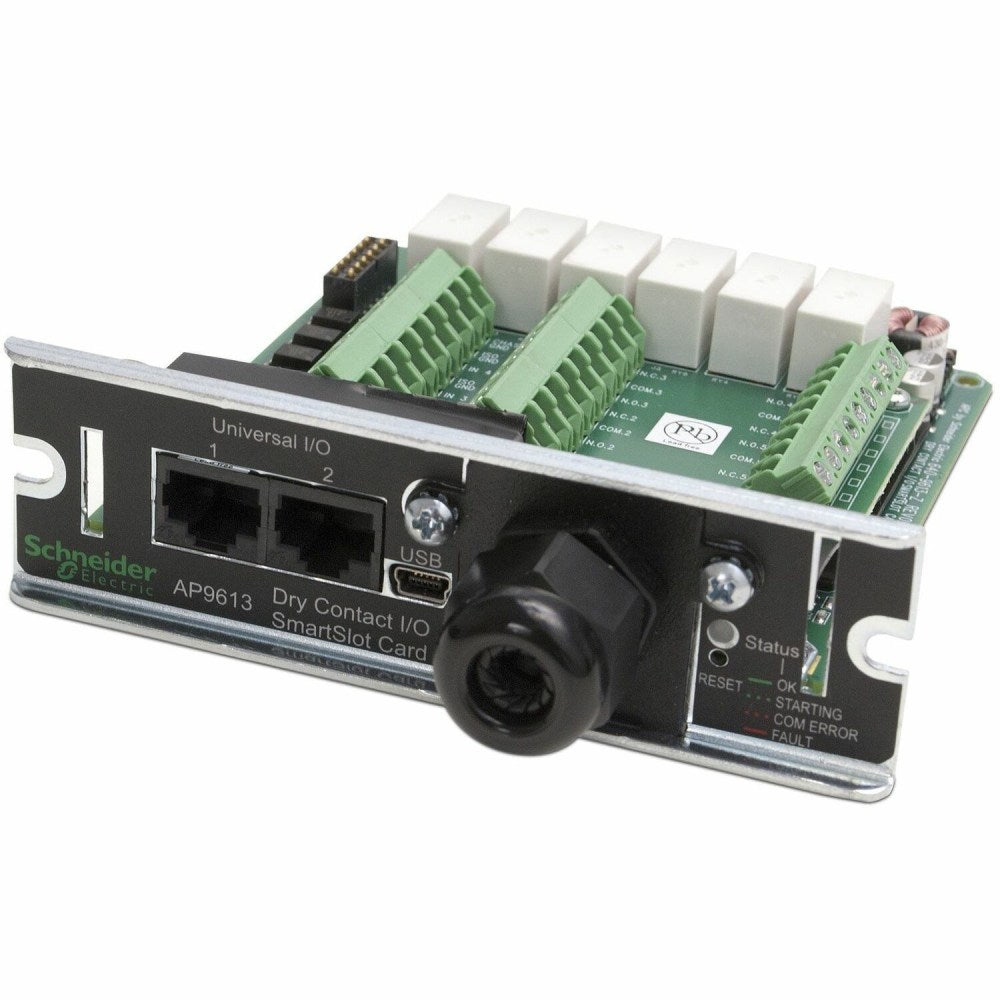

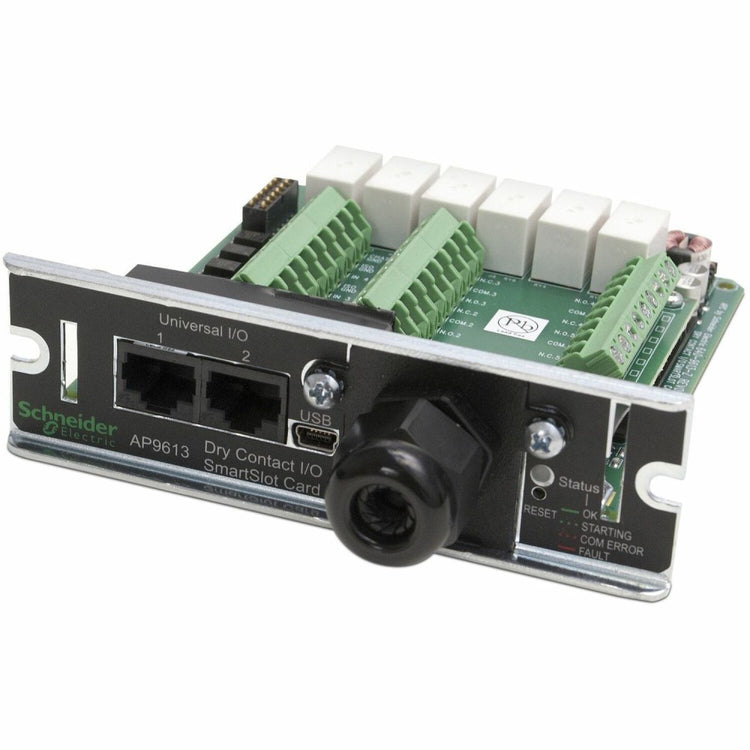

Schneider Dry Contact I/O SmartSlot Card - UPS management module - black - for P/N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC
Log in to see pricing
Couldn't load pickup availability
Same-day Shipping
This product usually ships and arrives next business day
